RFID Inlays

 >  RFID Inlays

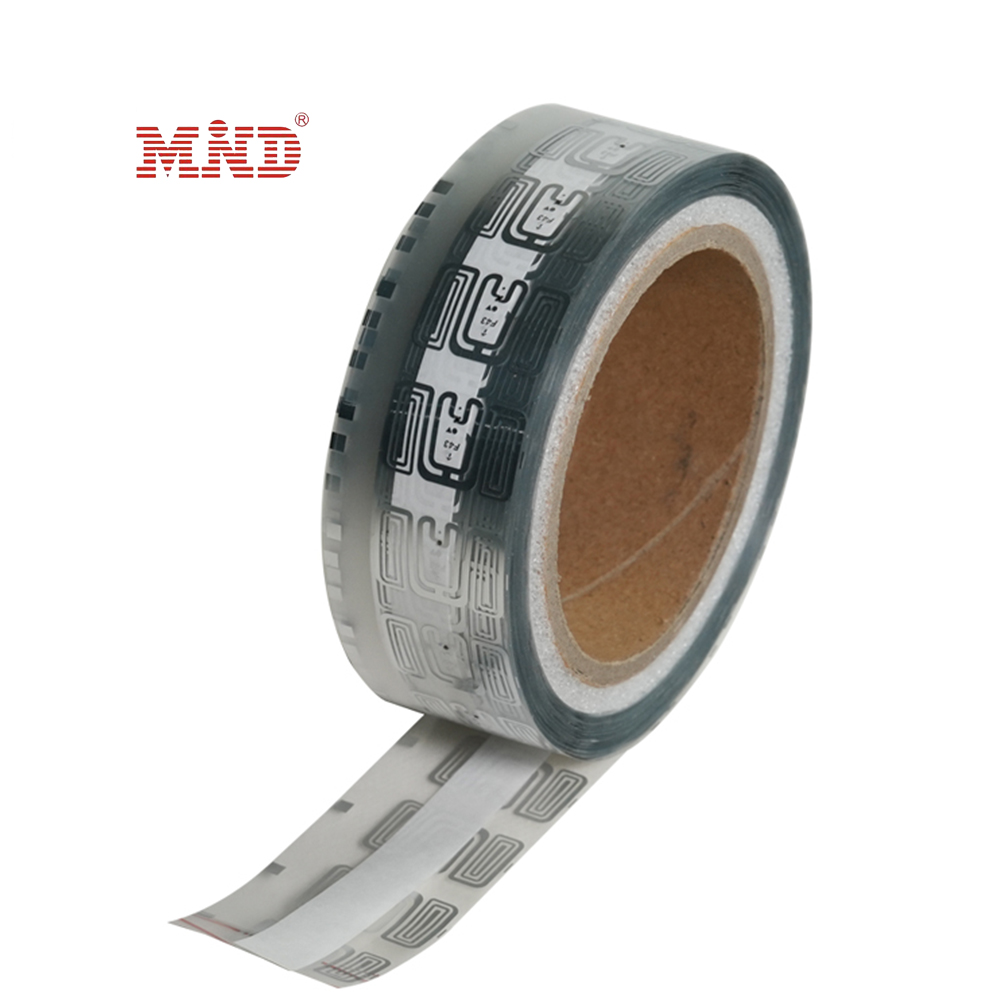

F43 M4QT UHF Passive Asset Tracking Sticker RFID Tags

Model NO: F43
Material: PET + aluminum
Antenna size:26×16mm
RFID chip: UHF

  • Description
  • Specifications
  • Related products
Description

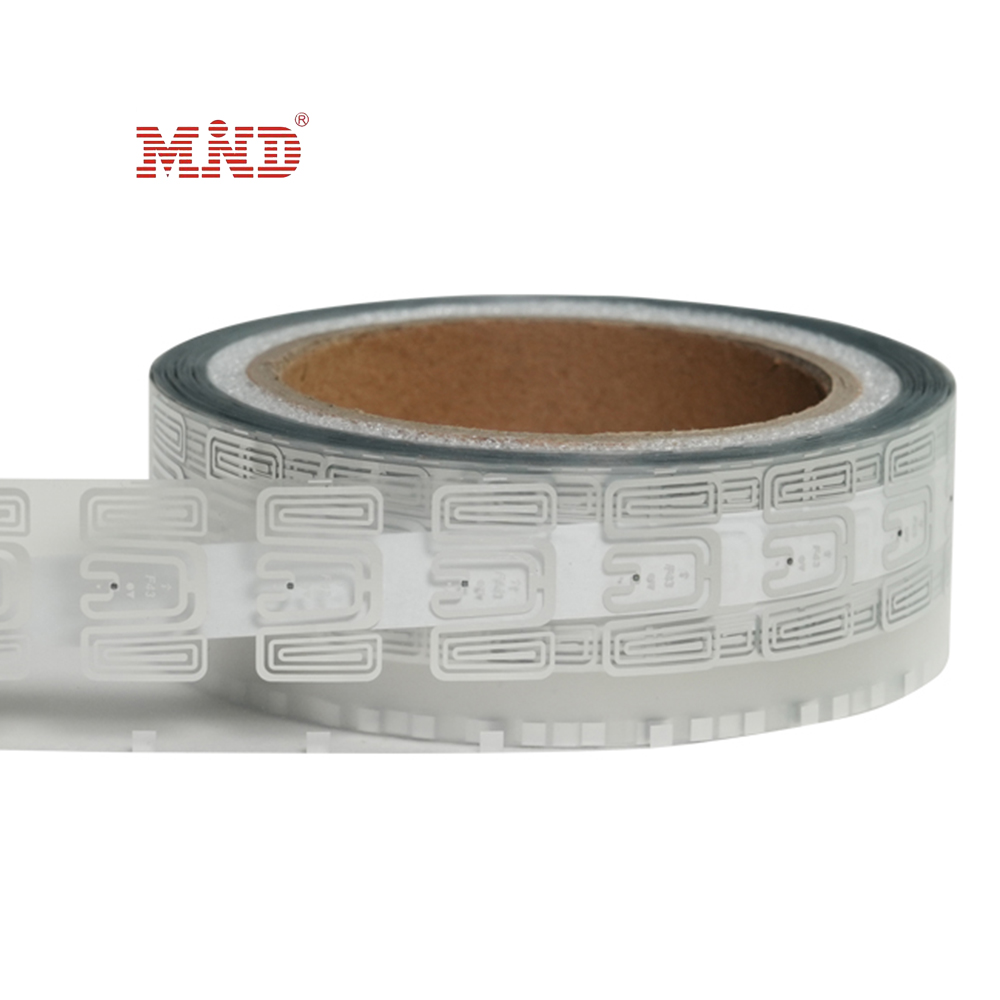

Inlay is a specialized term in the RFID industry, referring to a pre-laminated product composed of PET material and aluminum, with a chip and coil layers bonded together. Through various forms of encapsulation, different types of UHF RFID tag label can be produced. The inlay can be understood as an unencapsulated semi-finished product of an RFID tag label.
RFID inlay can be divided into dry inlay and wet inlay. F43 RFID tags sticker antenna standard size 26*16mm designed by Mind, antenna is made by laser cutting, with straight antenna lines, stable performance, environmental protection, and no environmental pollution caused by traditional etching processes.
RFID inlays are mainly used for application industry areas: Asset warehousing and logistics source positioning tracking, the retail industry as clothing hanging, various fast consumer goods and transportation industry vehicle management, etc.

Specifications
Product Name RFID Inlays
Size Antenna size: 26*16mm
Material PET + aluminum
Protocol ISO/IEC 18000-6C
EPC Class1 Gen2
Frequency 860~960MHz
Operating Mode Passive
EPC Memory 128Bits
TID Memory 48Bits
User Memory 512Bits
Reading Range 1-10m depends on antenna and reader
Data Storage 100,000 Programming cycles, 10
years data retention
Operating Temperature/Humidity [-25°C to +50°C]/ 20% to 80%
Storage Temperature/Humidity +23°C±5°C /50%±10%RH
Craft Encoding, number printing etc
Applications Assets management
Reusable plastic pallets
Costume label
File management
Logistics management etc
Package by roll or by pcs
