RFID Inlays

 >  RFID Inlays

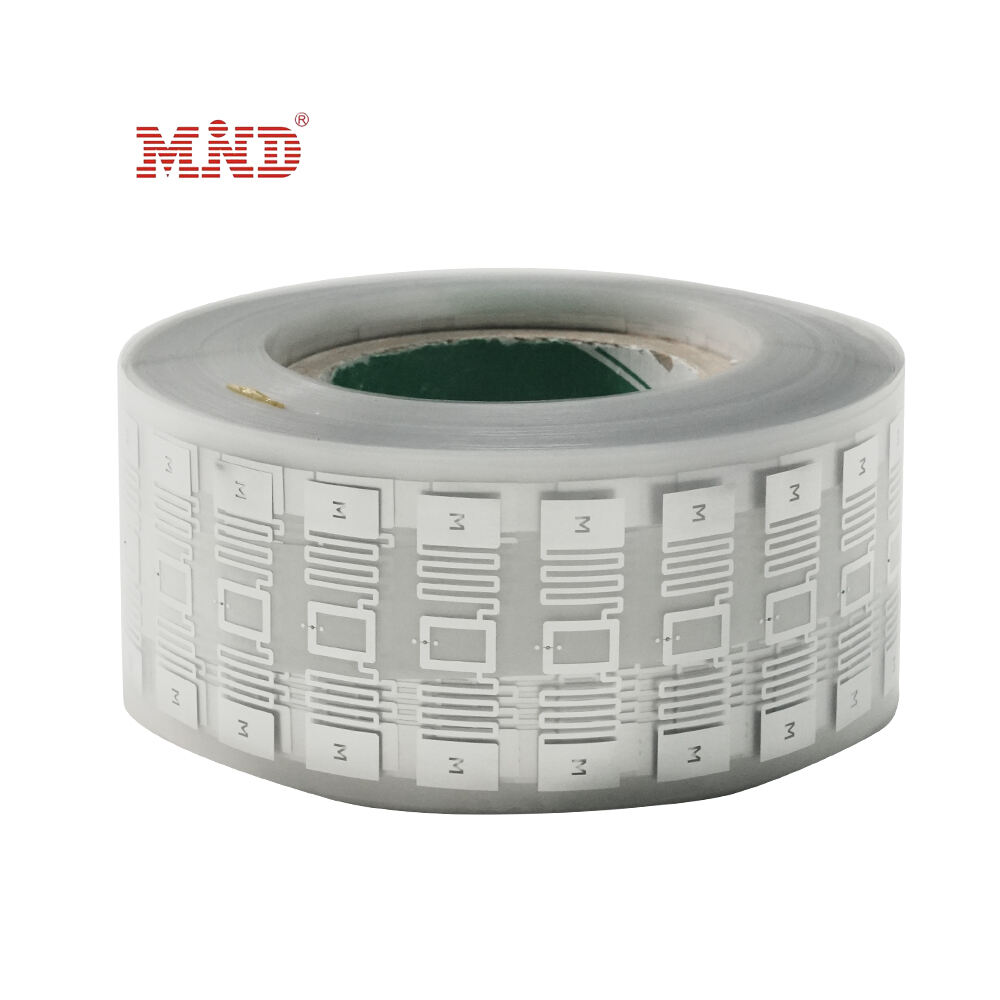

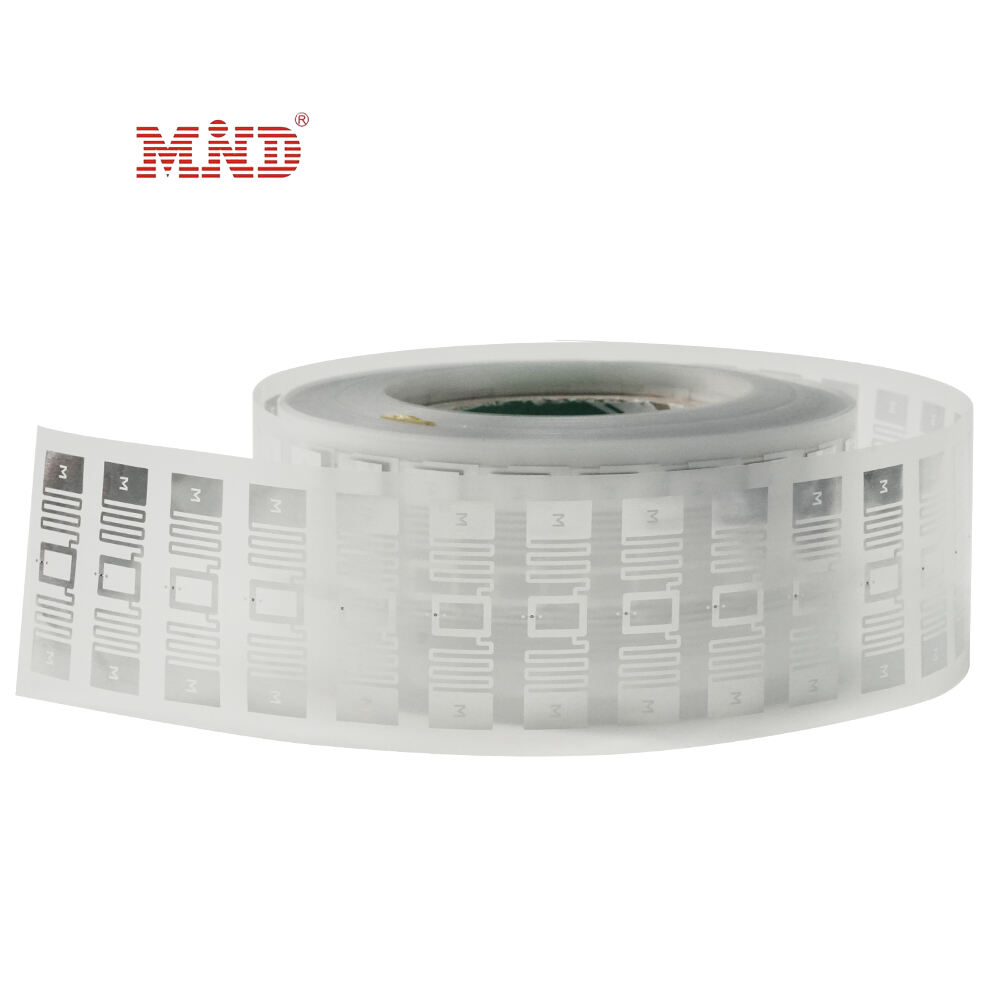

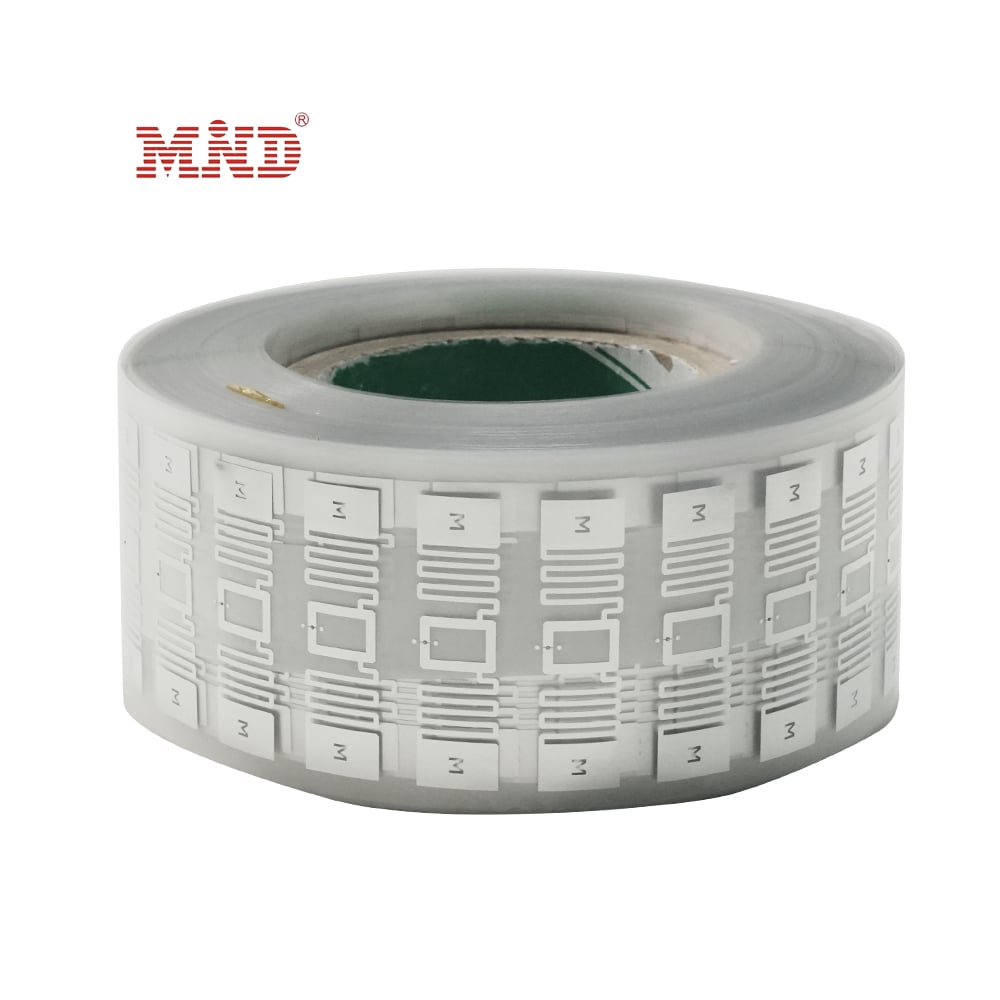

Mi5515 R6P UHF RFID Tag Sticker Long Range RFID Labels

Model NO:Mi5515
Material: PET + aluminum
Antenna size:55*15mm
Product size:58*18mm
RFID Chip: UHF

  • Description
  • Specifications
  • Related products
Description

Inlay is a specialized term in the RFID industry, referring to a pre-laminated product composed of PET material and aluminum, with a chip and coil layers bonded together. Through various forms of encapsulation, different types of UHF RFID tag sticker can be produced. The inlay can be understood as an unencapsulated semi-finished product of an RFID UHF labels.
RFID inlay can be divided into dry inlay and wet inlay. Mi5515 tag RFID antenna standard size 55*15mm designed by Mind, antenna is made by laser cutting, with straight antenna lines, stable performance, environmental protection, and no environmental pollution caused by traditional etching processes.
RFID inlays are mainly used for application industry areas: Asset warehousing and logistics source positioning tracking, the retail industry as clothing hanging, various fast consumer goods and transportation industry vehicle management, etc.

Specifications
Product Name RFID Inlays
Size Antenna size: 55*15mm
Produt size: 58*18mm
Material PET + Aluminum
Protocol ISO/IEC 18000-6C
EPC Class1 Gen2
Frequency 860~960MHz
Operating Mode Passive
EPC Memory 128Bits
TID Memory 48Bits
User Memory 32Bits
Reading Range 1-10m depends on antenna and reader
Data Storage 100,000 Programming cycles, 10 years data retention
Operating Temperature/Humidity [-25°C to +50°C]/ 20% to 80%
Storage Temperature/Humidity +23°C±5°C /50%±10%RH
Craft Encoding, number printing etc
Applications Assets management
Reusable plastic pallets
Costume label
File management
Logistics management etc
Package by roll or by pcs
