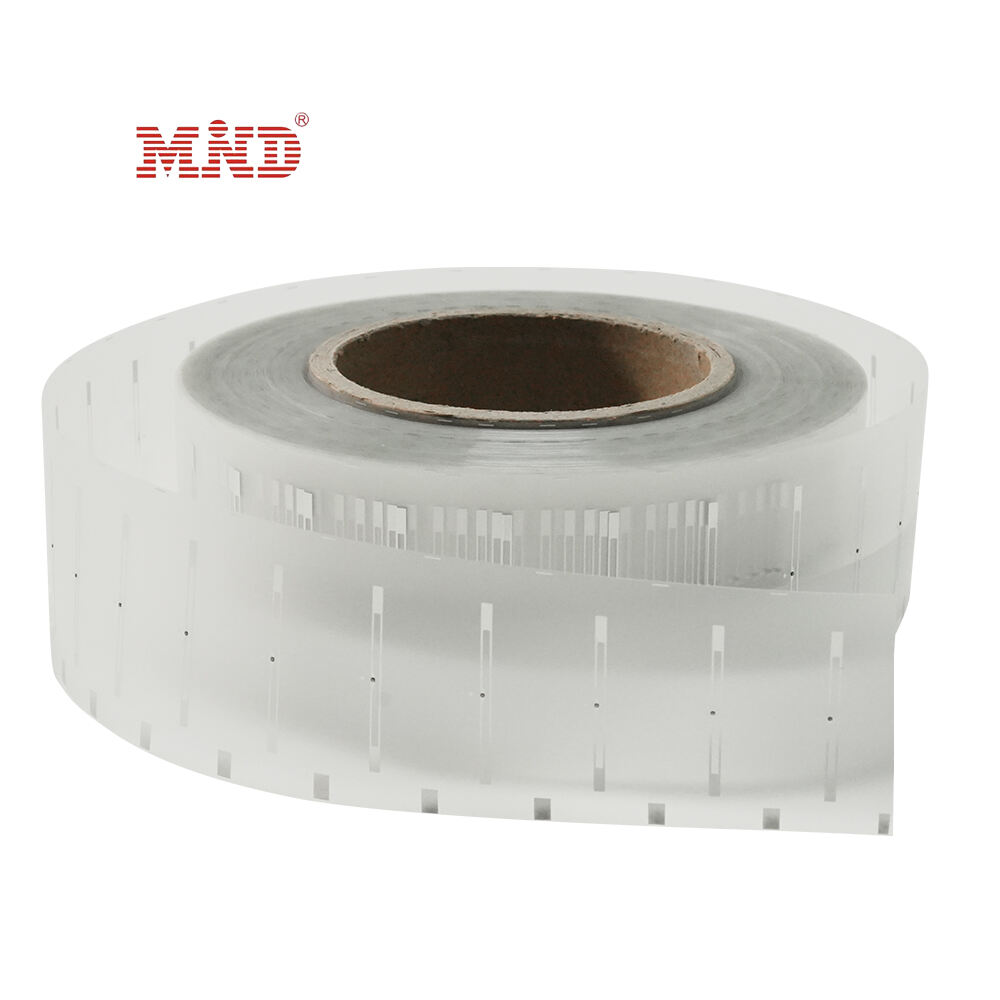

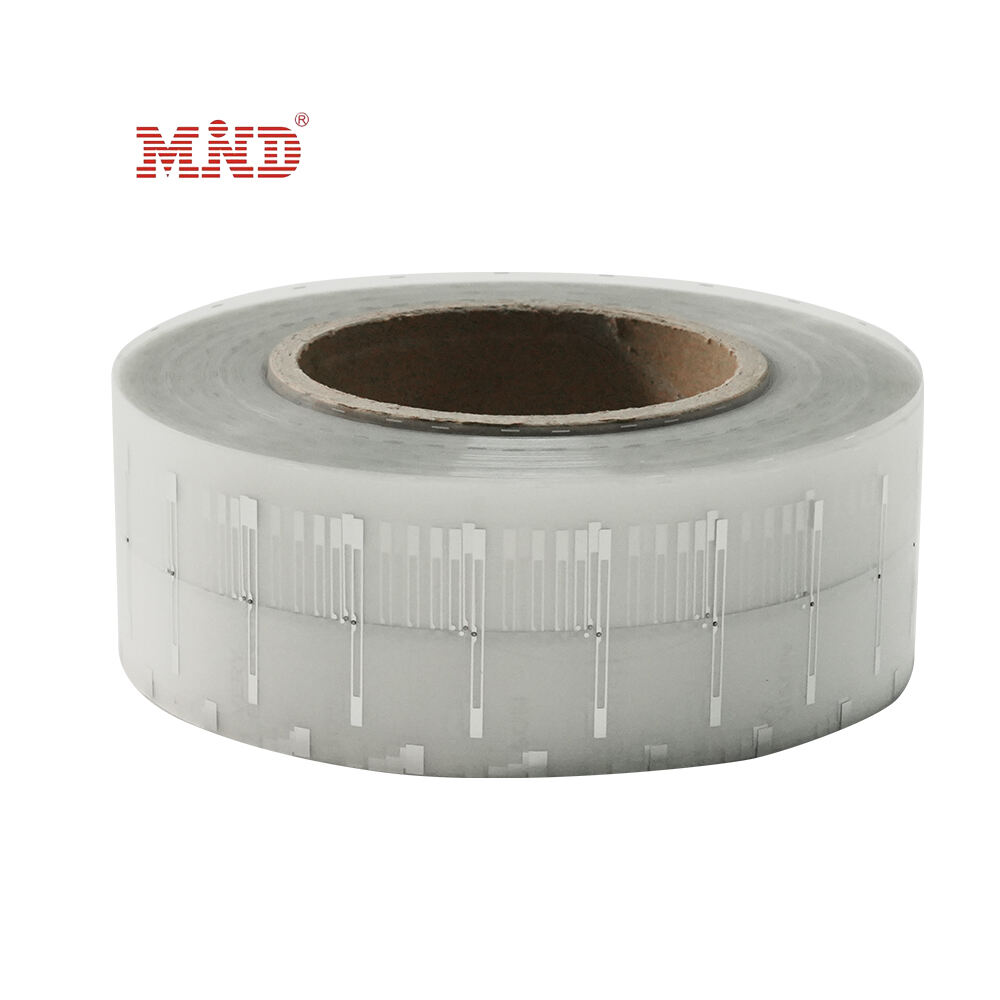

Model NO:Mi3502
Material: PET + aluminum
Antenna size:35*2mm
Product size:38×4mm
Chip: UCODE® 8
UCODE® is registered trademarks of NXP B.V. and are used under license.
Inlay is a specialized term in the RFID industry, referring to a pre-laminated product composed of PET material and aluminum, with a chip and coil layers bonded together. Through various forms of encapsulation, different types of UHF tag can be produced. The inlay can be understood as an unencapsulated semi-finished product of an RFID tags.
RFID inlay can be divided into dry inlay and wet inlay. Mi3502 label UHF RFID antenna standard size 35*2mm designed by Mind, antenna is made by laser cutting, with straight antenna lines, stable performance, environmental protection, and no environmental pollution caused by traditional etching processes.
RFID label stickers are mainly used for application industry areas: Asset warehousing and logistics source positioning tracking, the retail industry as clothing hanging, various fast consumer goods and transportation industry vehicle management, etc.
| Product Name | RFID Inlays |
| Size | Antenna size: 35*2mm |
| Produt size: 38*4mm | |
| Material | PET + Aluminum |
| Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 |
| Frequency | 860～960MHz |
| Operating Mode | Passive |
| EPC Memory | 128Bits |
| TID Memory | 48Bits |
| User Memory | 0Bits |
| Reading Range | 1-10m depends on antenna and reader |
| Data Storage | 100,000 Programming cycles, 10 years data retention |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% |
| Storage Temperature/Humidity | +23°C±5°C /50%±10%RH |
| Craft | Encoding, number printing etc |
| Applications | Assets management Reusable plastic pallets Costume label File management Logistics management etc |
| Package | by roll or by pcs |
