Model NO:Mi27
Material: PET + aluminum

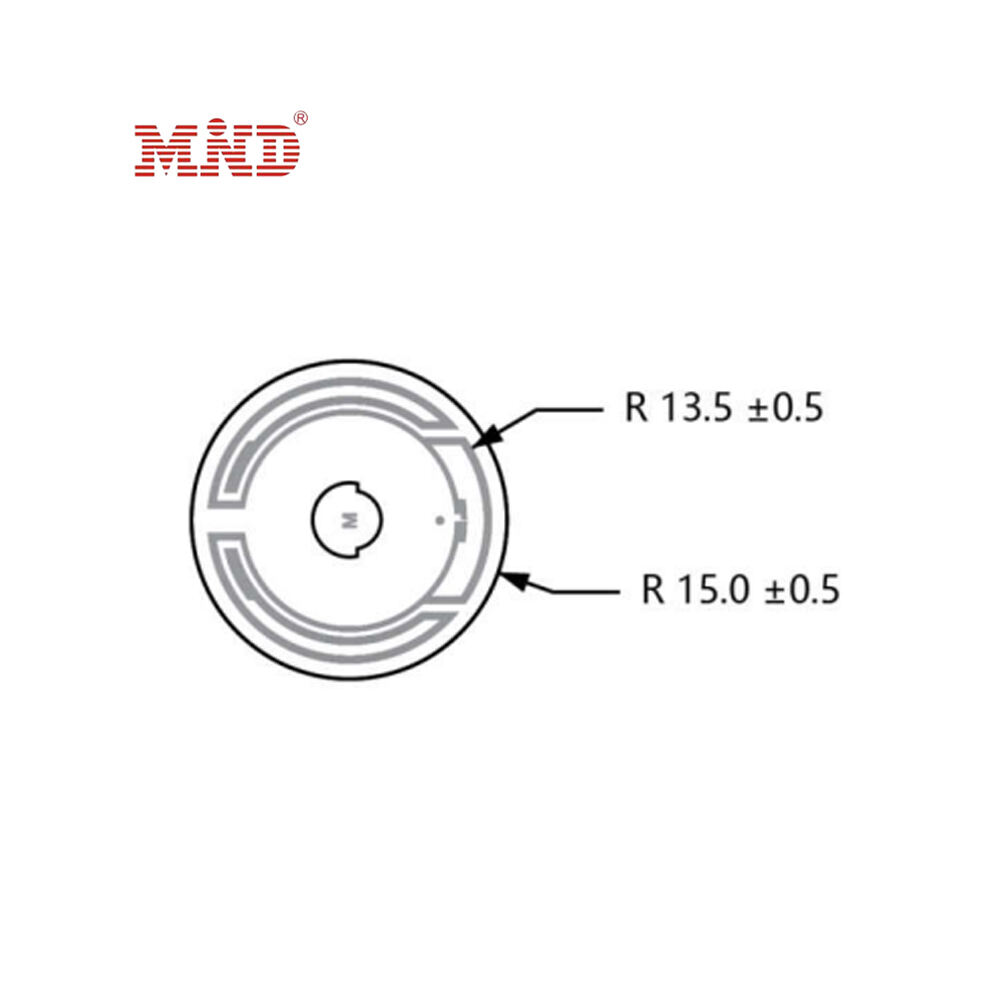

Antenna size:φ27mm
Product size:φ30mm
RFID chip: UHF
Inlay is a specialized term in the RFID industry, referring to a pre-laminated product composed of PET material and aluminum, with a chip and coil layers bonded together. Through various forms of encapsulation, different types of UHF RFID tag can be produced. The inlay can be understood as an unencapsulated semi-finished product of an RFID tags.
RFID inlay can be divided into dry inlay and wet inlay. Mi27 UHF Inlay antenna standard size φ27mm designed by Mind, the antenna is made by laser cutting, with straight antenna lines, stable performance, environmental protection, and no environmental pollution caused by traditional etching processes.
RFID chip label are mainly used for application industry areas: Asset warehousing and logistics source positioning tracking, the retail industry as clothing hanging, various fast consumer goods and transportation industry vehicle management, etc.
| Product Name | RFID Inlays |
| Size | Antenna size: φ27mm |
| Produt size: φ30mm | |
| Material | PET + Aluminum |
| Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 |
| Frequency | 860～960MHz |
| Operating Mode | Passive |
| EPC Memory | 96~496Bits |
| TID Memory | 48Bits |
| User Memory | Up to 688Bits |
| Reading Range | 1-10m depends on antenna and reader |
| Data Storage | 100,000 Programming cycles, 10 years data retention |
| Operating Temperature/Humidity | [-25°C to +50°C]/ 20% to 80% |
| Storage Temperature/Humidity | +23°C±5°C /50%±10%RH |
| Craft | Encoding, number printing etc |
| Applications | Assets management Reusable plastic pallets Costume label File management Logistics management etc |

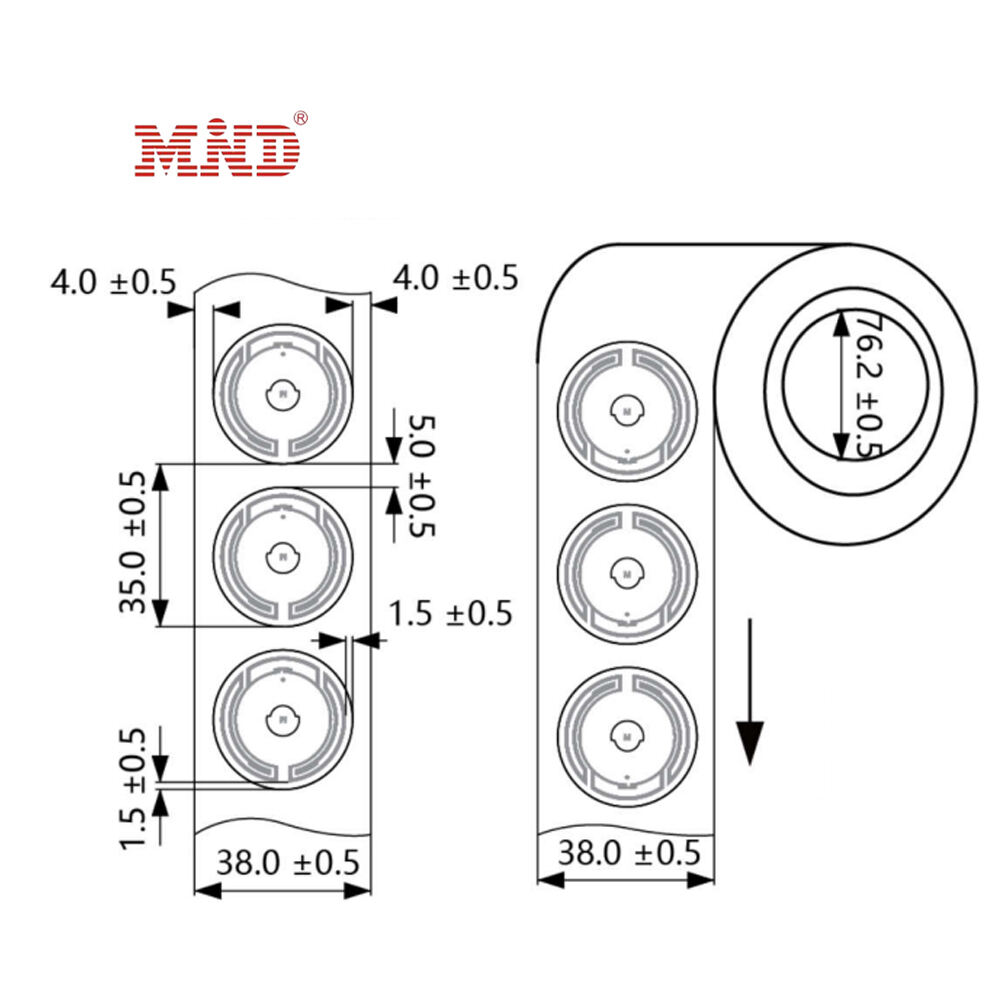

| Package | by roll or by pcs |
