Mi5030 인레이 UHF 860-960MHz RFID 태그 UHF 라벨 스티커 | RFID 인레이

Description

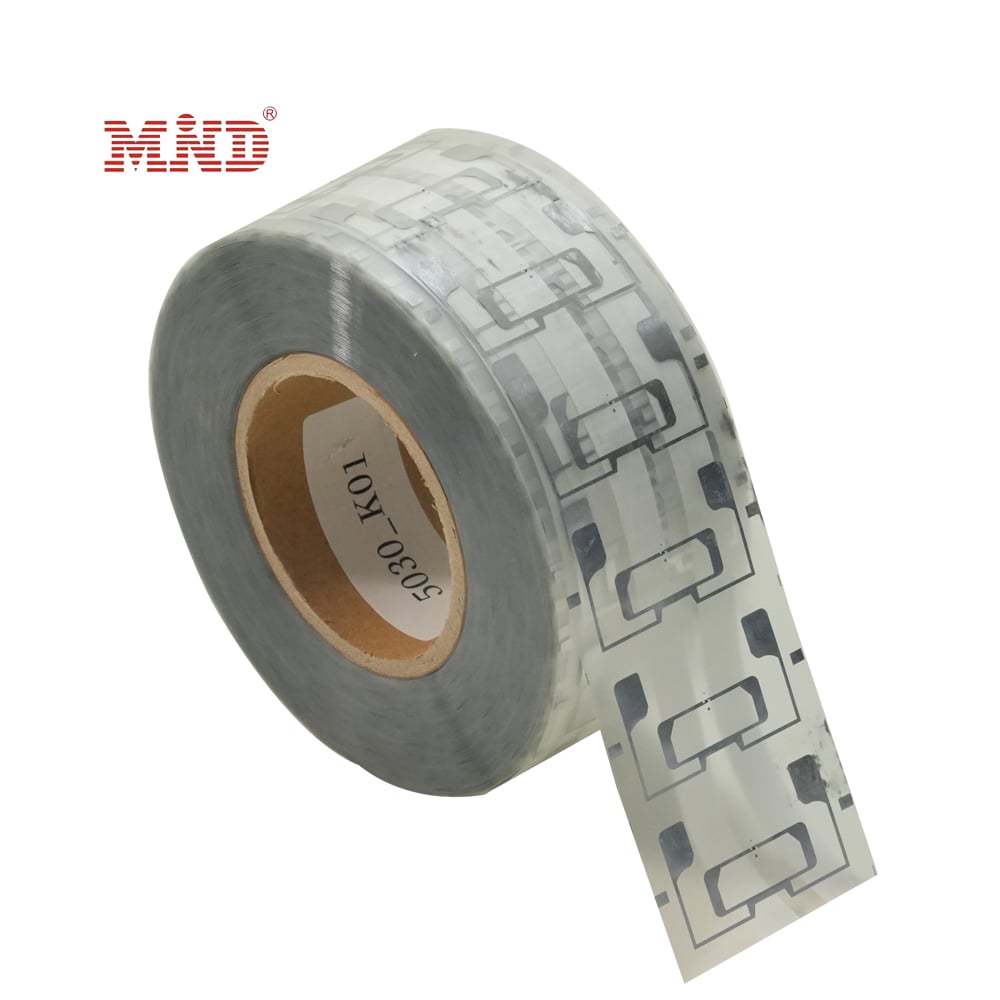

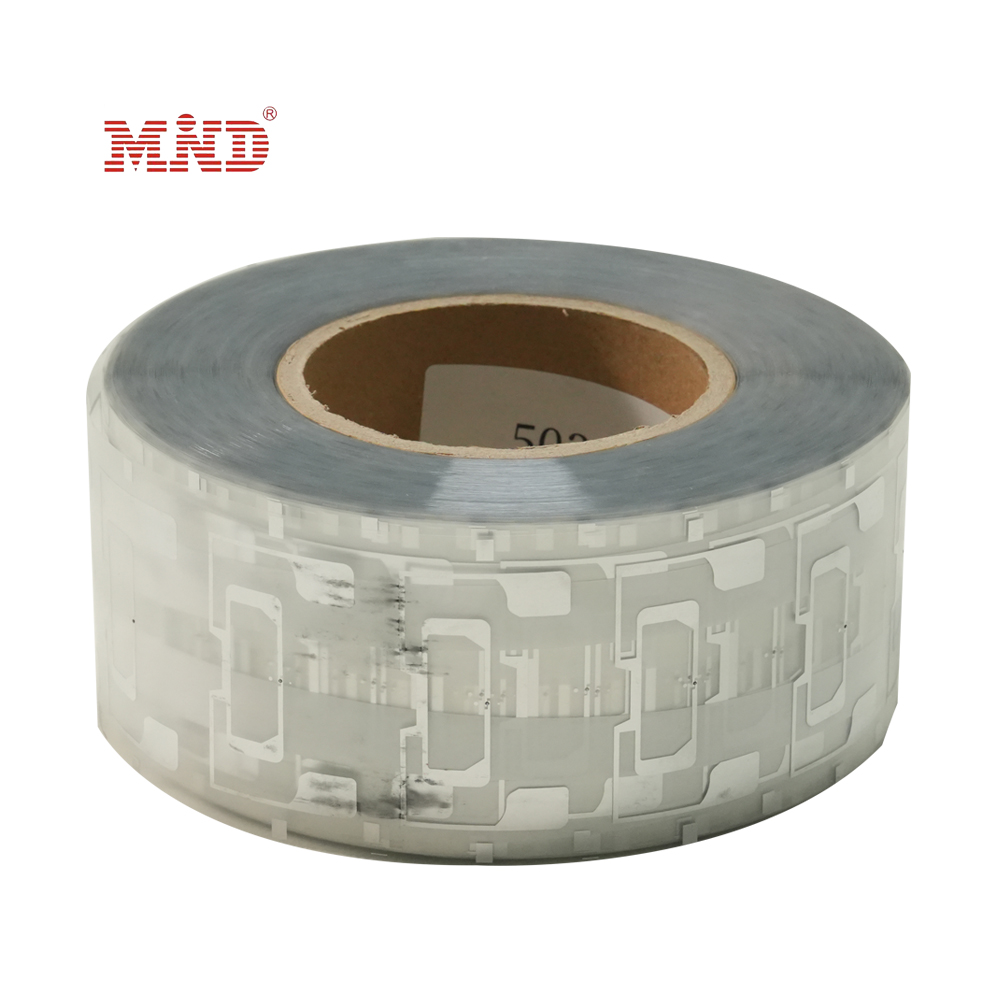

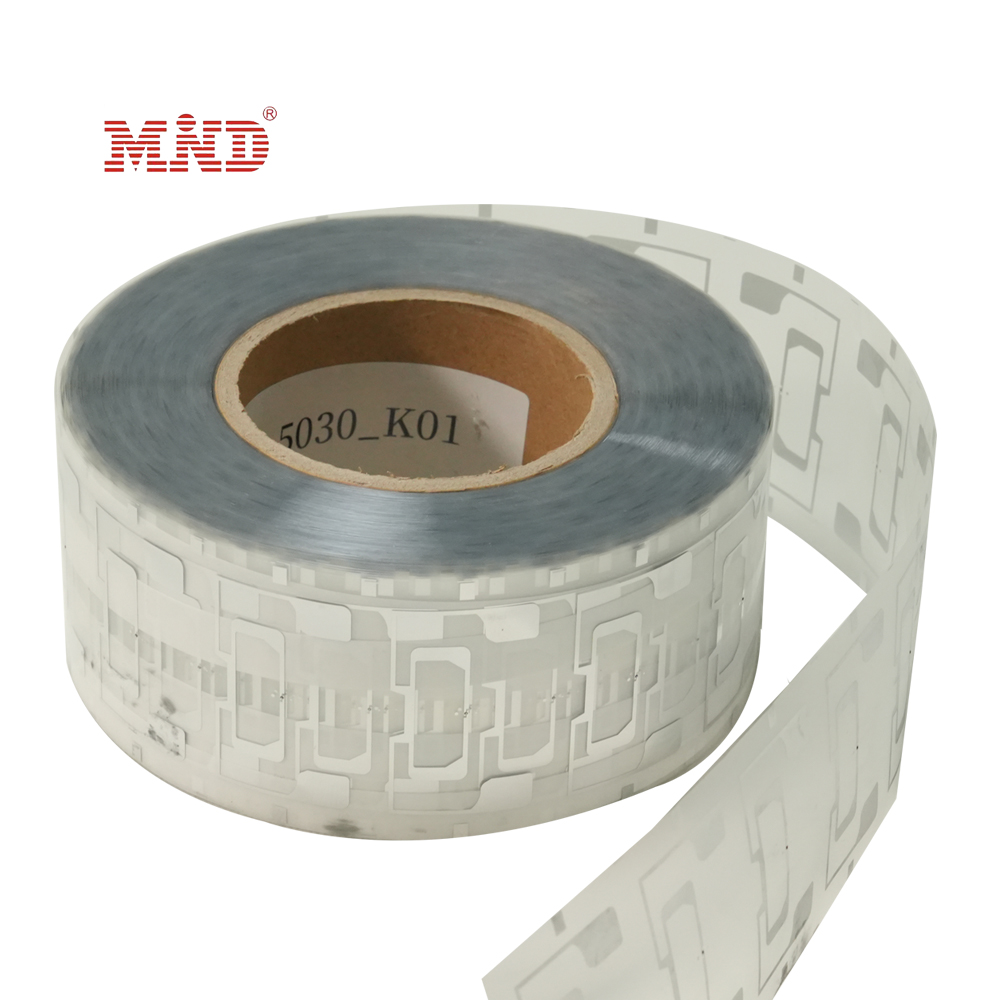

Inlay is a specialized term in the RFID industry, referring to a pre-laminated product composed of PET material and aluminum, with a chip and coil layers bonded together. Through various forms of encapsulation, different types of UHF RFID label sticker can be produced. The inlay can be understood as an unencapsulated semi-finished product of an Inlay RFID tags.
RFID inlay can be divided into dry inlay and wet inlay. Mi5030 RFID UHF label antenna standard size 50*30mm designed by Mind, antenna is made by laser cutting, with straight antenna lines, stable performance, environmental protection, and no environmental pollution caused by traditional etching processes.
RFID inlays are mainly used for application industry areas: Asset warehousing and logistics source positioning tracking, the retail industry as clothing hanging, various fast consumer goods and transportation industry vehicle management, etc.

Specifications

Product Name	RFID Inlays
Antenna size	50*30mm
Material	PET + Aluminum
Protocol	ISO/IEC 18000-6C EPC Class1 Gen2
Frequency	860～960MHz
Operating Mode	Passive
EPC Memory	96-128Bits
TID Memory	NONE
User Memory	NONE
Reading Range	1-10m depends on antenna and reader
Data Storage	100,000 Programming cycles, 10 years data retention
Operating Temperature/Humidity	[-25°C to +50°C]/ 20% to 80%
Storage Temperature/Humidity	+23°C±5°C /50%±10%RH
Craft	Encoding, number printing etc
Applications	Assets management Reusable plastic pallets Costume label File management Logistics management etc
Package	by roll or by pcs
